Industrial Weighing

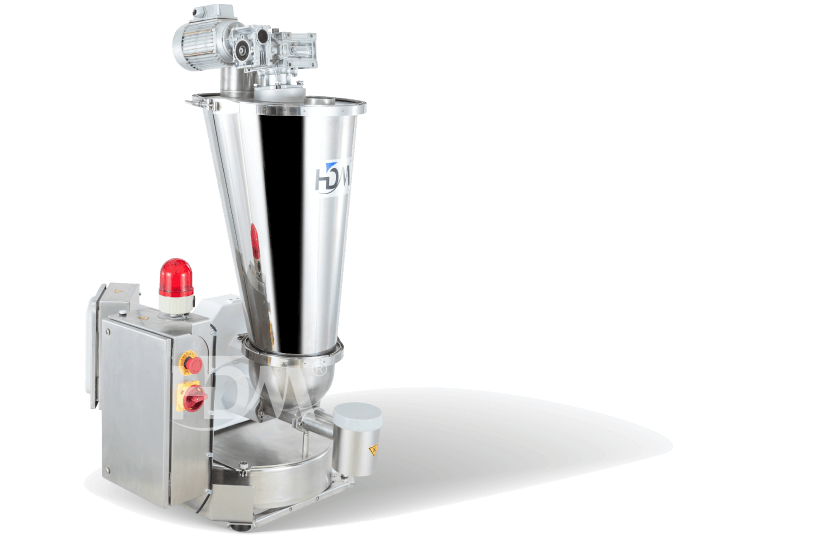

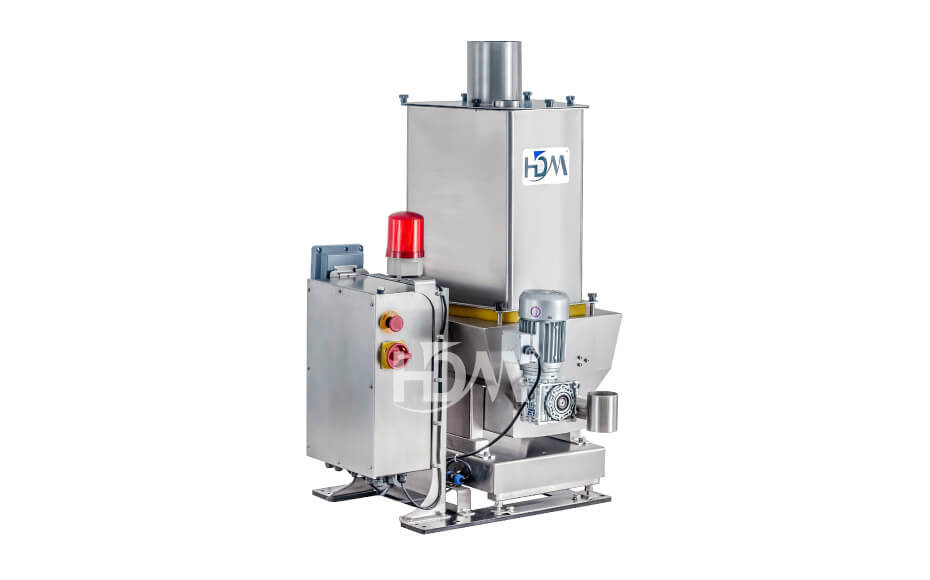

Flexible-hopper Padding Loss-in-Weight Feeder

Loss-In-Weight Feeder is a precision feeding device designed specifically for handling granular or free-flowing powdered materials. Utilizing advanced technology, this feeder is capable of delivering maximum accuracy at minimal feed rates, meeting the precise ingredient requirements in different industries.

PRODUCT DESCRIPTION

The Flexible-hopper Padding Type loss-in-weight feeder is Irregular hopper, effectively prevent material from bridging. To meet different requirements, variable frequency drive (VFD) or servo drive can be selected. For severe environment operating requirements, explosion-proof also available as options.

Main Feature

Flexible hopper flapping design, effectively solve the bridging problem
Irregular hopper design, effectively prevent bridging
Variable frequency drive (VFD) or servo drive can be selected
Available in anti-explosion
Disassembled without tools
7 inches color touch screen

APPLICATION

powders, free-flowing materials
It can be used in powders or free-flowing materials.

SPECIFICATION

ltem	Flexible-hopper Padding Feeder
Model	ZZL-20-SZ
Specification	ST-1D-B	ST-2D-B	ST-3D-B
Flow Rate Range (L/h)	1 - 150	5 - 300	10 - 1000
Hopper Sizes (L)	25	50	100
Weighing Range	60	120	300
Net Weight	90	120	150
Length (mm)	797	816	1192
Weight (mm)	757	755	720
Height (mm)	881	1228	1285
Power Supply	AC 220 - 240 V, 50/60 Hz, 1.0 KW	AC 220 - 240 V, 50/60 Hz, 1.5 KW	AC 220 - 240 V, 50/60 Hz, 1.8 KW
