Industrial Weighing

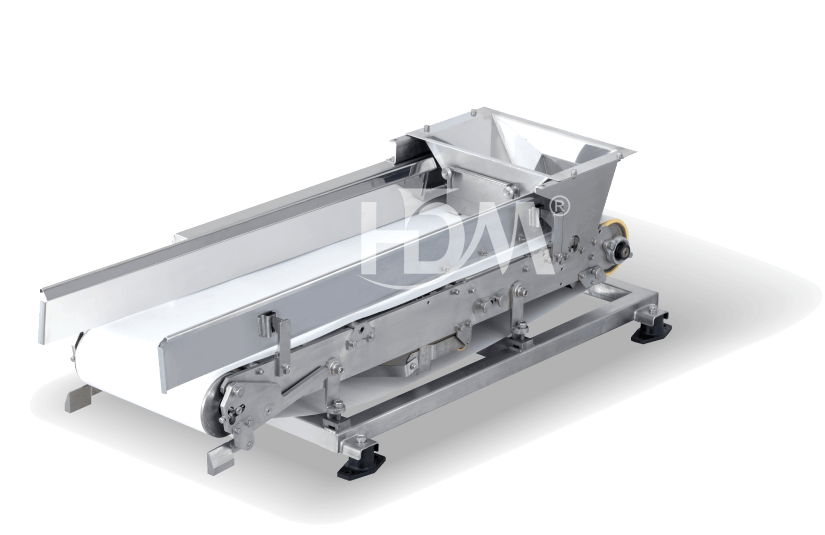

Belt Type

Loss-In-Weight Feeder is a precision feeding device designed specifically for handling granular or free-flowing powdered materials. Utilizing advanced technology, this feeder is capable of delivering maximum accuracy at minimal feed rates, meeting the precise ingredient requirements in different industries.

PRODUCT DESCRIPTION

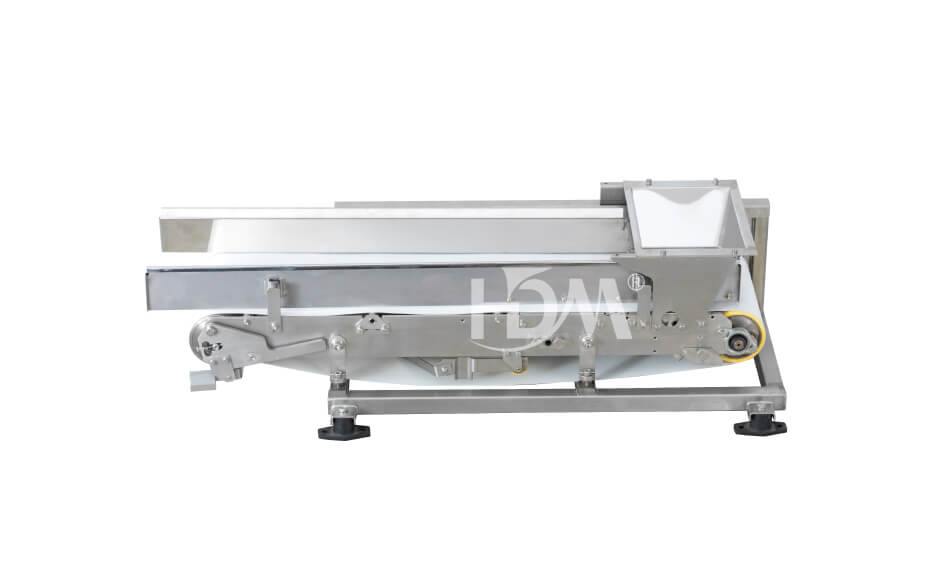

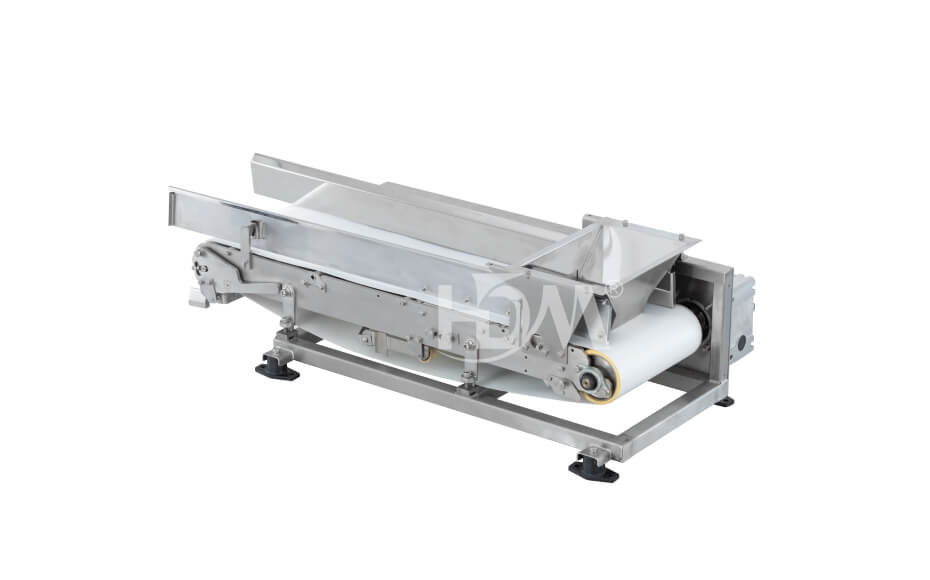

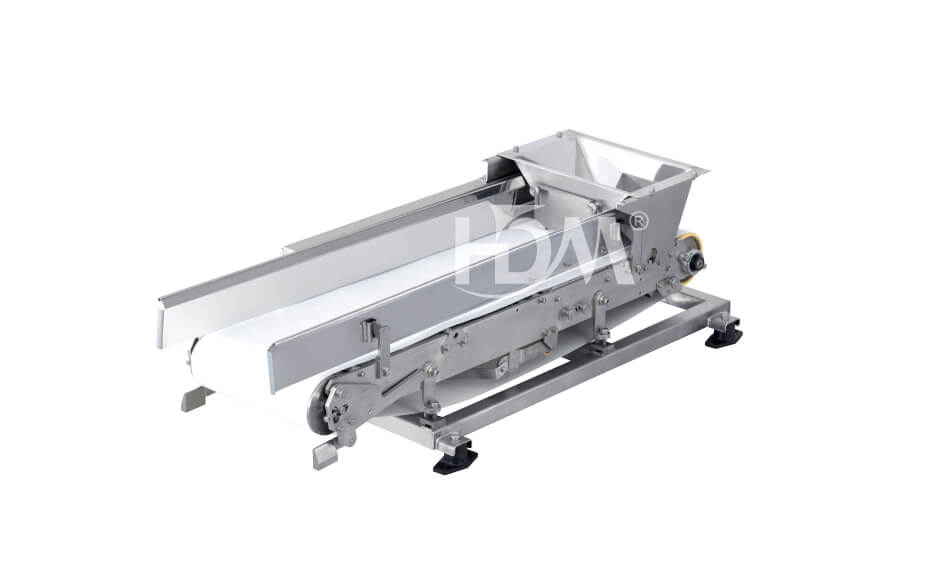

The Belt type loss-in-weight feeder is designed for large and fragile material like fries or nuts. It can satisfy different demands, such as continuous or quantitative feeding. The accuracy it can reach is +-1%. All made of stainless steel.

Main Feature

Open design facilitates cleaning and maintenance.
Satisfy quantitative or continuous even feeding.
All stainless steel construction.
Accuracy accessibility ± 1%.
Disassembled without tools.
7 inches color touch screen.
Double feedback control system

APPLICATION

large or fragile materials
It is suitable for weighing large and fragile materials like fries and nuts.

SPECIFICATION

ltem	Belt Type
Model	ZLP-9000-DL
Specification	B-300-O	B-500-O	B-800-O
Flow Rate Range (L/h)	30 - 8000	50 - 10000	50 - 26000
Hopper Sizes (L)	300	500	800
Weighing Range	5	10	20
Net Weight	Approx.120 kg	Approx.170 kg	Approx.200 kg
Length (mm)	1280	1280	1280
Width (mm)	642	846	1146
Height (mm)	385	385	385
Power Supply	AC 220 - 240 V, 50/60 Hz, 1.0 KW
